51 21 330 Removing and Installing/Replacing Window Cavity Cover Strip on Inner Front Door



51 21 330 Removing And Installing/Renewing Window Cavity Cover Strip On Inner Front Door







Necessary preliminary tasks:
- Remove front door trim

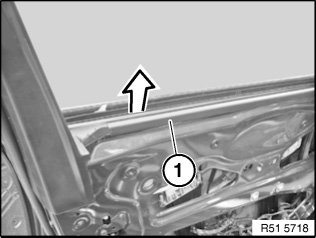

Pull off window cavity cover strip (1) towards top.







Installation:

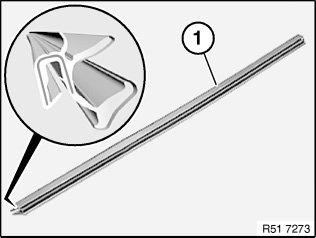

Coat window cavity cover strip (1) with water before fitting.
Start with installation at front.
