51 37 000 Removing and Installing/Replacing Complete Rear Left or Right Power Window Unit

51 37 000 - Removing and installing/replacing complete rear left or right power window unit





Necessary preliminary tasks:
- Remove rear door window glass





Release screw (1).
Tightening torque 51 35 11AZ [1][2]Rear Door Window Motor.
Release screws (4).
Tightening torque 51 35 2AZ [1][2]Rear Door Window Motor.
Disconnect plug connection (5).
Feed out power window unit (3).

Installation:
Holder (2) must be correctly seated on inner door panel rail.





Installation:

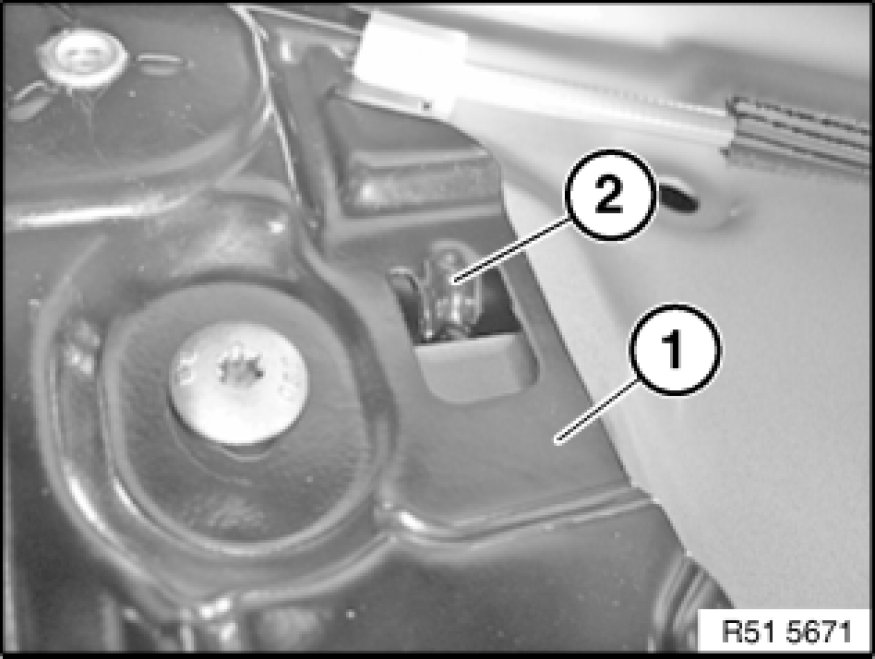

Make sure guide lug (2) of power window unit (1) is correctly seated in door structure.





Replacement:
Remove flat motor 67 62 020 Removing and Installing/Replacing Flat Motor For Rear Left or Right Power Window Unit
After installation:
A normalization must be carried out in order to activate anti-trapping protection.
Normalization is carried out via the Service function in the diagnosis system.
- Body
- Locking and security functions
- Power windows
- Initialize power windows
