66 20 517 Removing and Installing/Renewing A Centre Front Left Ultrasonic Sensor

66 20 517 Removing And Installing/Renewing A Centre Front Left Ultrasonic Sensor







Necessary preliminary work:
- Remove middle left or right radiator grille

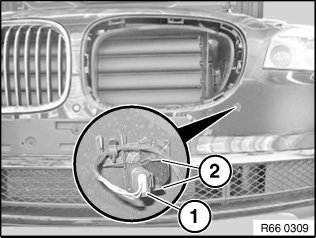

Release retaining tabs (2).
Press ultrasonic sensor from outside towards inside and remove.
Unfasten plug connection (2) and disconnect.

Installation note:
Retaining tabs (2) must not be damaged.
Make sure ultrasonic sensor is securely seated.







Installation note:

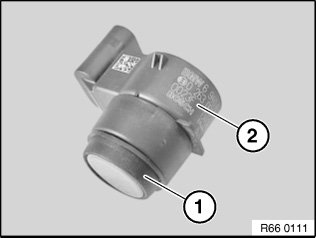

Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).
