63 31 085 Removing and Installing/Replacing Luggage Compartment Light (Rear Lid)

63 31 085 - Removing and installing/replacing luggage compartment lamp (on rear lid)





Important!
Follow instructions for handling light bulbs (interior lights) 63 99 x02 Instructions For Replacing Light Bulbs (Interior Lights).

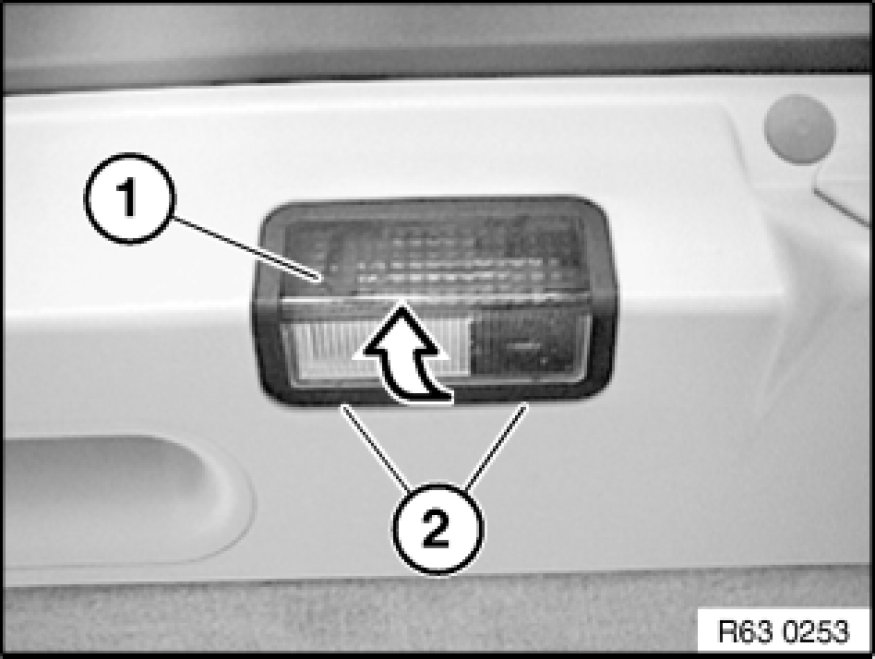

Lever out luggage compartment lamp (1) at openings (2) in direction of arrow.
Disconnect plug connection underneath and remove luggage compartment lamp (1).





Replacement:
- If necessary, remove bulbs
- Note bulb type 63 31 Interior Lights.
