11 14 080 Removing and Installing Timing Case Cover, Top Left

11 14 080 Removing and installing timing case cover, top left (N63)

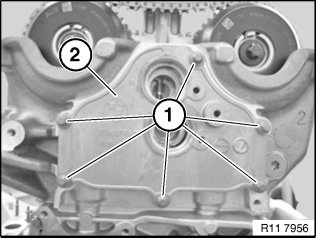

Timing case cover, cylinders 5-8

Necessary preliminary work:
^ Remove both solenoid valves on left side





Release screws (1).

Tightening torque 11 14 3AZ.

Remove timing case cover (2).

Installation note:
Replace gasket.





Assemble engine.
