11 61 068 Removing and Installing/Replacing Right Intake Manifold

11 61 068 Removing and installing/replacing right intake plenum (N63)





Necessary preliminary work:
^ Remove right injection pipe.
^ Remove throttle valve
^ Release screws on intake plenum from above without fail before lowering front axle.
^ Secure engine in installation position.
^ Lower front axle, releasing screws on engine mount first
^ Release A/C compressor and place to one side.





Detach engine ventilation hose (1).

Disconnect connector.

Unscrew nuts (2).

Tightening torque: 11 61 1 AZ.

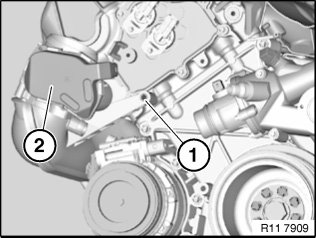

Remove throttle valve (2).

Release screw (1).

Tightening torque: 11 61 2 AZ.

Feed out intake plenum towards rear.

Installation note:
Replace all profile seals.





Assemble engine and vehicle.

Check air intake system for leaks.
