11 61 065 Removing and Installing/Replacing Left Intake Plenum

11 61 065 Removing and installing/replacing left intake plenum (N63)





Necessary preliminary work:
^ Remove left injection pipe.
^ Remove throttle valve
^ Release screws on intake plenum from above without fail before lowering front axle.
^ Secure engine in installation position.
^ Lower front axle, releasing screws on engine mount first
^ Release power steering pump, if installed, and set aside.
^ Universal joint with corrugated tubing.





Detach engine ventilation hose (1).

Disconnect connector.

Unscrew nuts (2).

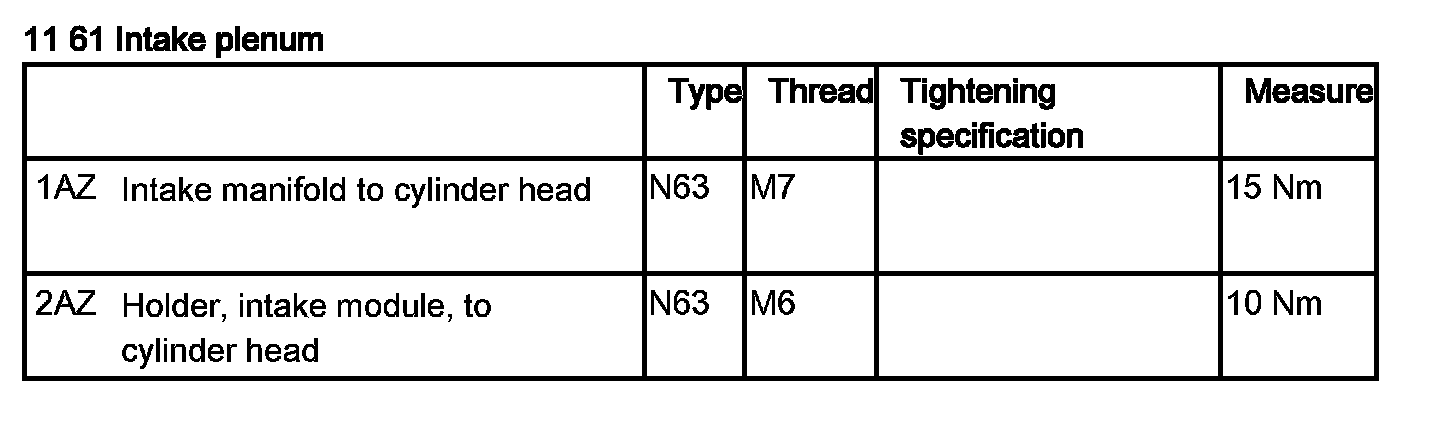

Tightening torque: 11 61 1 AZ.





Release throttle valve (1).

Release holder screw (2) on intake plenum.

Tightening torque: 11 61 2AZ.

Feed out intake plenum towards rear.

Installation note:
Replace all profile seals.





Assemble engine and vehicle and

Check air intake system for leaks.
