Replacing Servodrive For Outer Left Ventilation Flap

64 11 827 - Replacing servodrive for outer left ventilation flap





Necessary preliminary tasks:
- Remove instrument panel trim 51 45 030 Removing and Installing Instrument Panel Trim

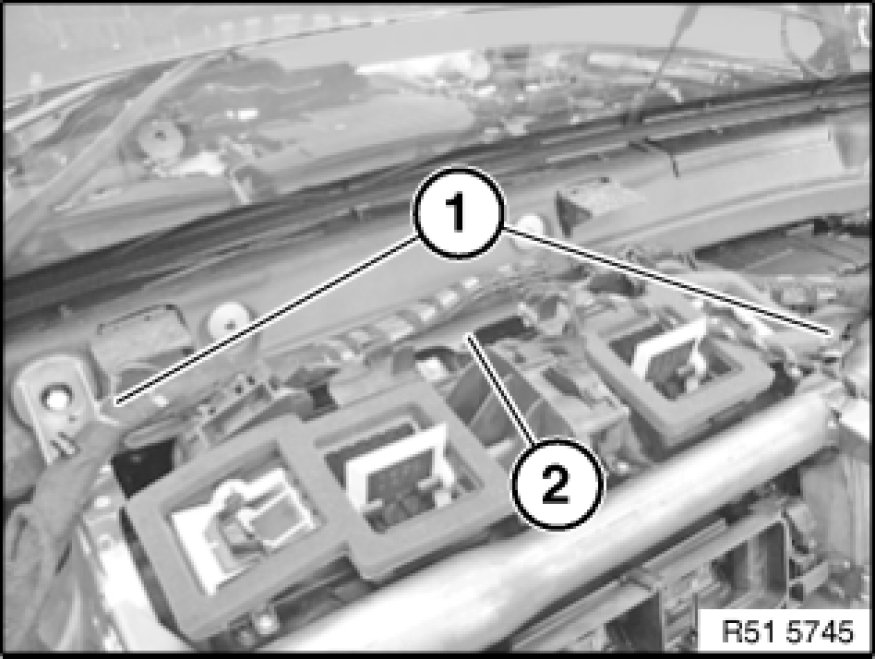

Release screws (1 and 2).
Remove wiring harness holder.

Installation:
Make sure ground cable is correctly seated on wiring harness holder.

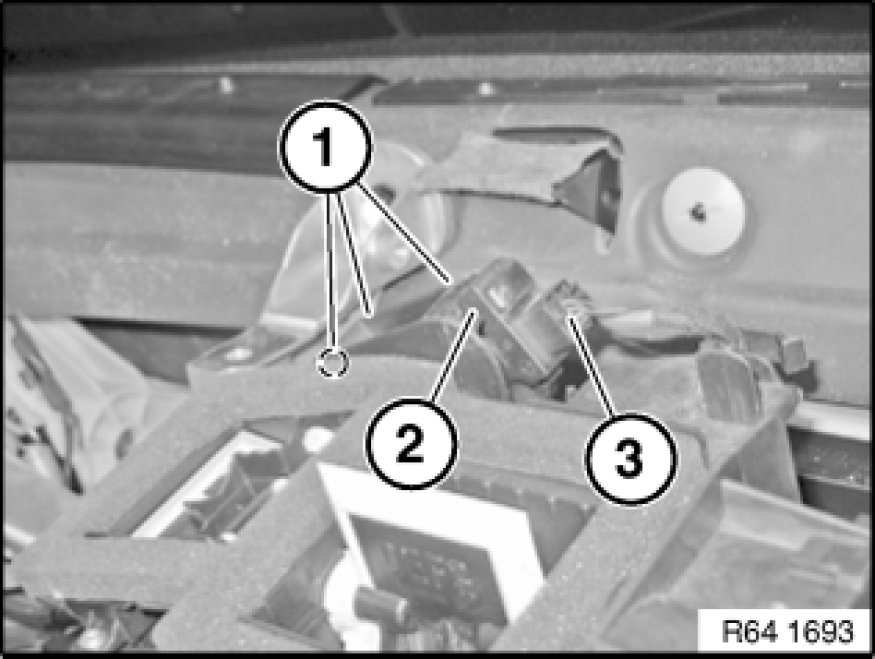

Release screws (1).
Remove servomotor (2) and unlock and disconnect plug connection (3).
