Replacing Servodrive For Fresh Air/Ram Air

64 11 819 - Replacing servodrive for fresh air/ram air





Necessary preliminary tasks:
- Remove right/rear suspension cross-brace 51 71 346 Removing and Installing/Replacing Right/Rear Suspension Cross-Brace

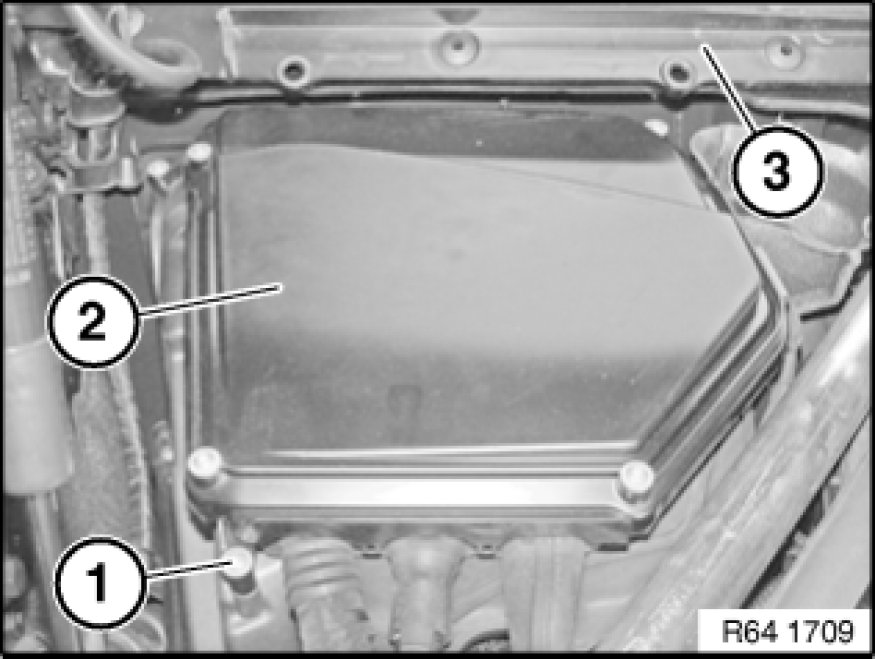

Lever expander rivet (1) out of cowl panel cover (2).

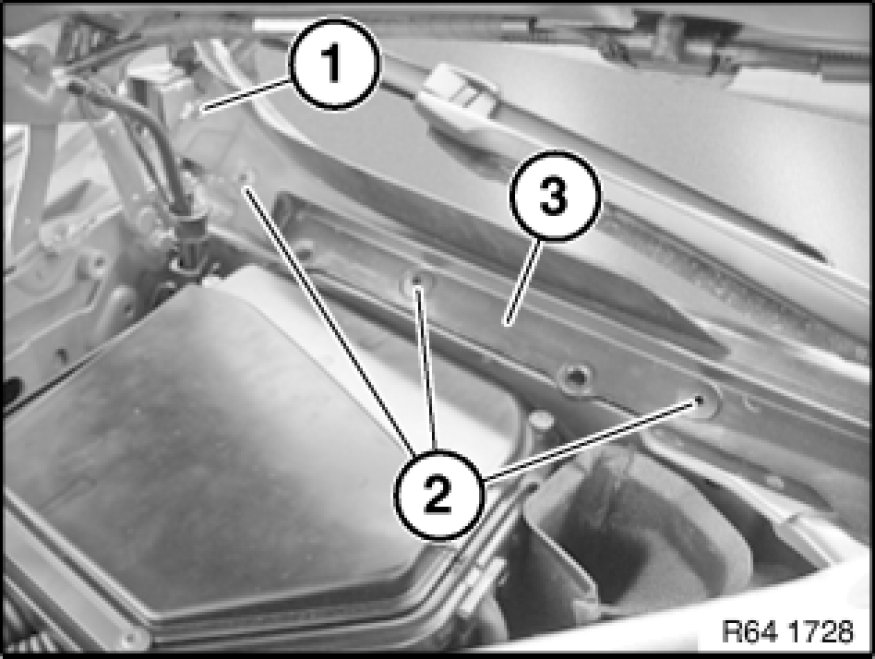

Unlock plastic fasteners (2).





Release screw (1).
Raise cowl panel cover (3), feed out supplementary electronics box (2) and set down safely in engine compartment.

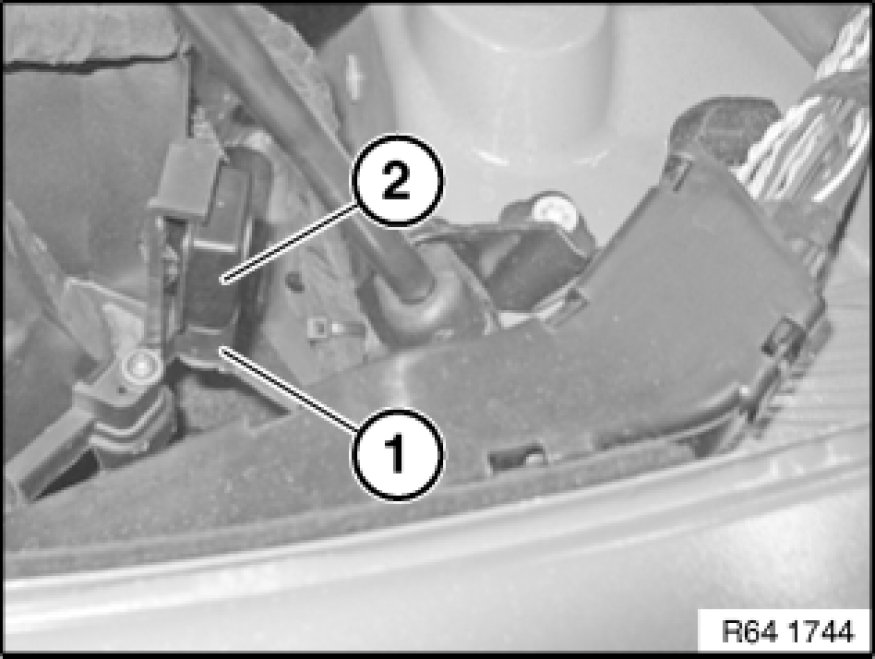

Unlock plug connection (1) on AUC sensor and disconnect.

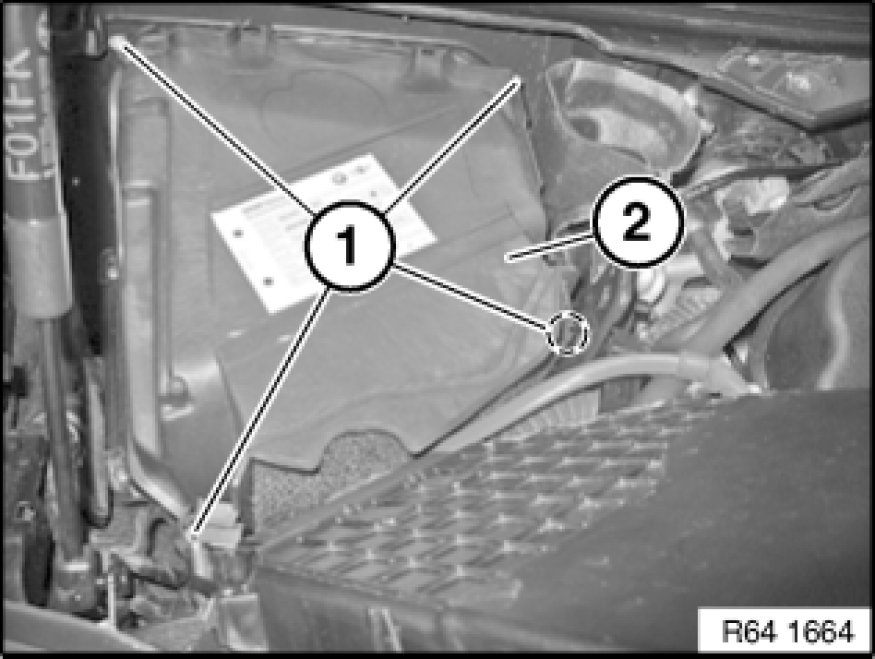

Release screws (1) on fan housing cover (2).
Lift out fan housing cover.

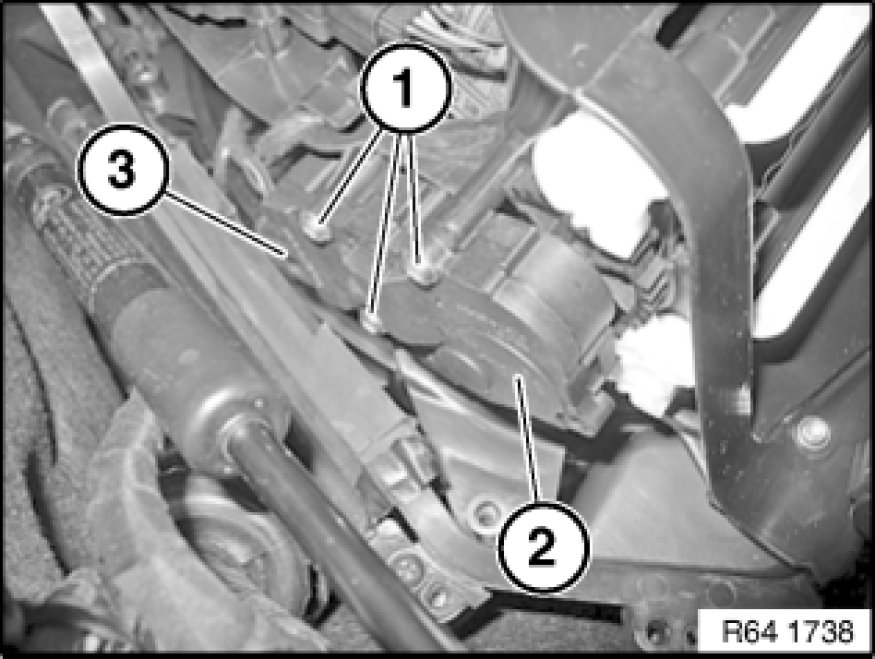

Release screws (1).
Remove servodrive (2).
Unlock plug connection (3) and disconnect.
