51 12 825 Removing and Installing/Replacing Guide for Rear Centre Bumper

51 12 825 Removing And Installing/Replacing Guide For Rear Centre Bumper







Necessary preliminary tasks:
- Remove rear bumper trim
- If necessary, remove sensor for lane change warning







NOTE:
- Operation is described on the left side.
- The operation on the right side is the same as for the left side.

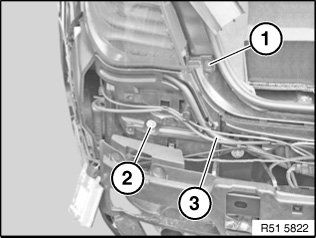

Release screw (1).
Slacken nut (2).
Tightening torque 51 12 2AZ.

Installation note:
Note line routing.

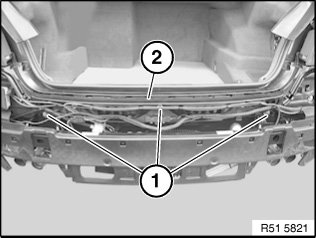

Unscrew nuts (1).
Tightening torque 51 12 2AZ.
If necessary, remove plug connection on bumper aerial for comfort access system.
Feed out guide (2) and remove.







Replacement:
- Remove bumper aerial for comfort access system
