Wiper Blade: Service and Repair

61 61 021 Replacing Left Or Right Windscreen Wiper Blade







Move wipers into fold-out position:
- Switch on terminal "R" and then switch off again immediately
- Press wiper lever upwards and hold for approx. 3 seconds until wiper arms stop in roughly vertical position (fold-out position)







Take infrared remote control (ignition key).

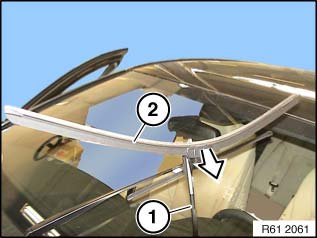

Raise wiper arm (1) and fold back windscreen wiper blade (2).
Remove windscreen wiper blade (2) in direction of arrow from wiper arm (1).

Installation note:
Make sure wiper blade (2) is guided.
Fold wiper arms onto windscreen.







IMPORTANT:
Before switching on terminal "R" or the ignition or starting the engine, you must fold the wiper arms onto the windscreen otherwise damage will be caused.
Switch on terminal "R".
Move windscreen wipers to rest position with a flick wipe.
