51 22 330 Removing and Installing/Replacing Window Cavity Cover Strip on Inside Rear Door

51 22 330 Removing And Installing/Replacing Window Cavity Cover Strip On Inside Rear Door







IMPORTANT: The "Instructions on fitting window guide seals" serve as the basis for this repair instruction and must be observed without fail.







Necessary preliminary tasks:
- Remove rear door trim panel

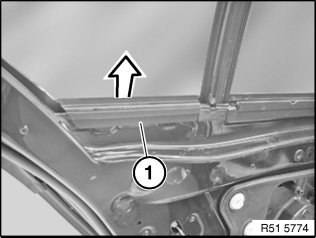

Pull front window cavity cover strip (1) off rear door.

Installation:
Moisten window cavity cover strip (1) prior to fitting with approved lubricant.







Pull rear window cavity cover strip (1) off rear door.
