51 32 160 Removing and Installing/Replacing Inner Cover on Left or Right Window Frame

51 32 160 Removing And Installing/Replacing Inner Cover On Left Or Right Window Frame







Necessary preliminary tasks:
- Remove front door trim

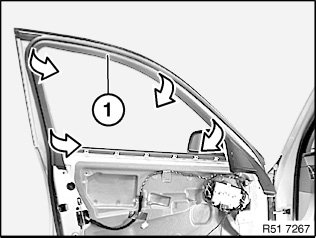

Starting at front end and working toward the inside and down, pry out cover (1).







Installation note:

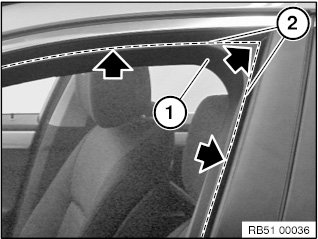

- Feed cover on window frame (2) neatly into the gap of the rubber window seal (1).
- Make sure cover fits properly above door seal.
