51 31 242 Replacing Rubber Frame (Bottom) For Rear Window

51 31 242 Replacing Rubber Frame (Bottom) For Rear Window







Necessary preliminary tasks:
- Remove both trim strips from roof frame







IMPORTANT:
- Rubber frame (1) is reinforced with an aluminium strip.
- Pull off rubber frame (1) carefully in direction of arrow (rear window breakage).

NOTE:
- Tear-off tab on left/right may be bonded to adhesive.
- When rubber frame (1) is removed, tear-off lip on left/right may tear off and remain in vehicle.

Installation:

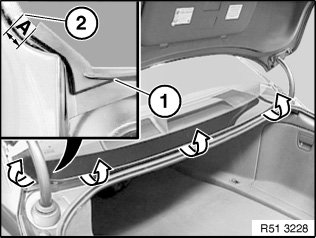

Gap (A) between rubber frame (1) and rear window corner (2) must be the same on left/right.







Installation:
Replacement of rubber frame without rear window removal:
Detach tear-off tabs (2) from rubber frame (1).
If adhesive has managed to get onto bridge, this area must be cut out partially.

Replacement of rubber frame with removed or new rear window:
Fit rubber frame with tear-off tabs (2).

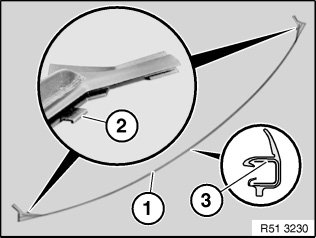

3 Aluminium strip
