Back Window Glass Moulding / Trim: Service and Repair

51 31 241 Removing and installing/replacing rear window cover (top)

Special tools required:







Necessary preliminary tasks:
- Remove rear window

Observe note on component bonding with adhesive tape.

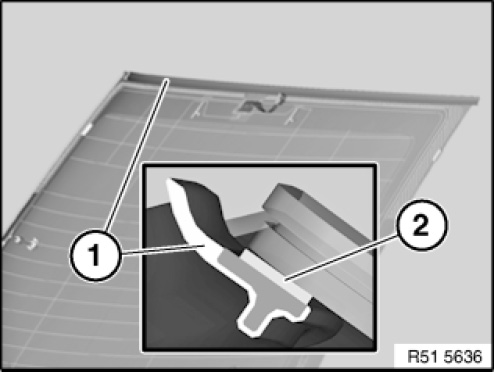

Detach cover (1).
Remove remnants of adhesive tape (2).
Clean bonding surface.
Air drying time: ≥ 1 minute

IMPORTANT:
Adhesive area must be dry and free from dust and grease.
Once it has been cleaned, do not touch the adhesive area with bare hands.







Installation note:
Pre-treat adhesive area with Sika-Aktivator - 205 applicator.
Air drying time: ≥ 1 minute

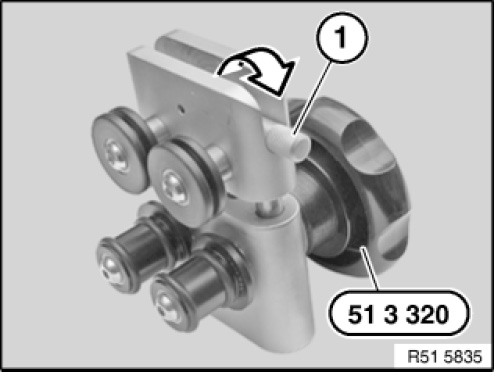

Reposition lever (1) and open special tool 51 3 320.

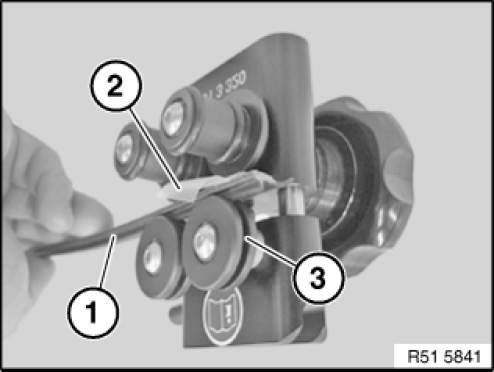

Pull off protective film (2) in stages from adhesive tape.
Insert cover (1) in guide pulleys (3).

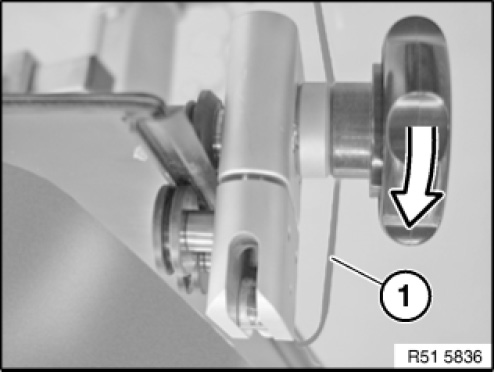

Place special tool with contact rollers (1) up against upper window edge.
Align cover to window outer edge.
Fit cover and visually check for perfect seating.

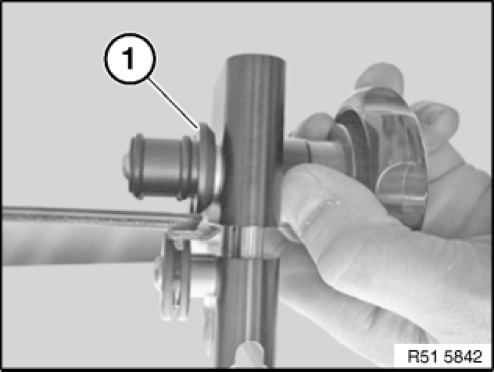

Reposition lever (1) and close special tool.

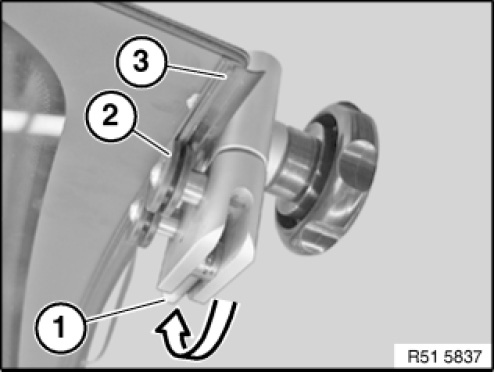

Make cover (3) is correctly seated in guide pulleys (2).







Continue to pull off protective film (1) in stages from adhesive tape.
Run special tool with hand wheel over entire upper window edge.
