Vibration Damper: Service and Repair

33 11 ... Removing and installing/replacing vibration absorber

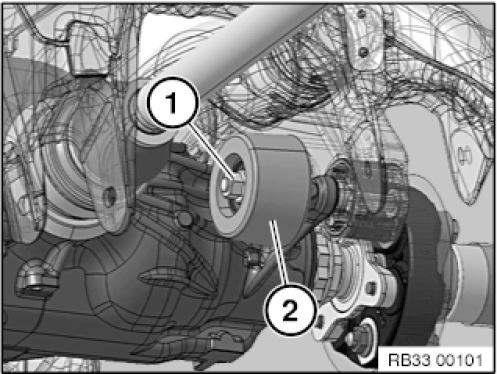

Vibration absorber to anti-roll bar, right:
Release screws (1).
Tightening torque 33 55 3AZ.
Remove vibration absorber (2).

Installation note:
Replace screw.

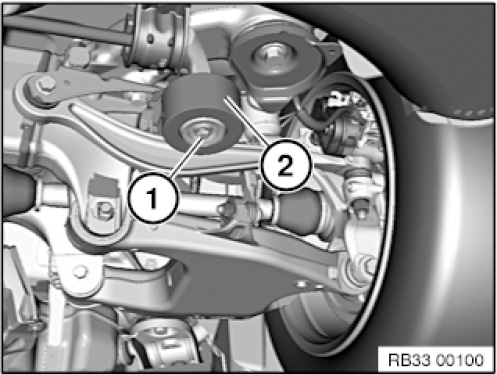

Vibration absorber to rear axle differential, front right:
Slacken nut (1).
Tightening torque 33 17 3AZ.
Remove vibration absorber (2).

Installation note:
Replace nut.

First, screw the rear axle differential to the rear axle support with the specified tightening torque.

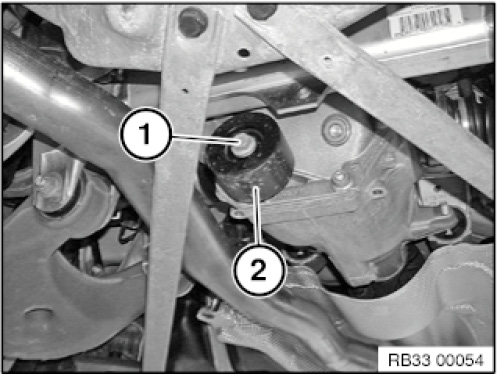

Vibration absorber to rear axle differential:
Release screw (1).
Tightening torque 33 11 3AZ.
Remove vibration absorber (2).

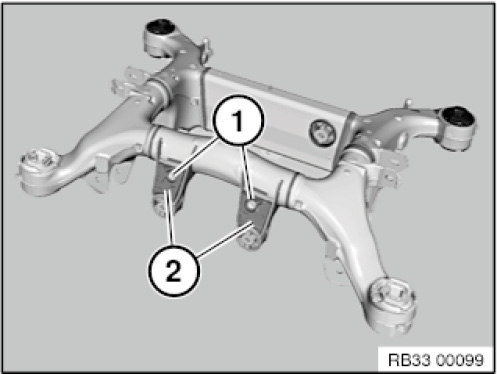

Vibration absorber to rear axle support, front:
Release screws (1).
Tightening torque 33 33 4AZ.
Remove vibration absorber (2).
