Shifter A/T: Adjustments

24 00 018 Adjusting gear lever (parking lock emergency release)





Note:
Check cable for ease of movement.

Move gear selector switch to "P" position.

Control for emergency release must not be actuated.

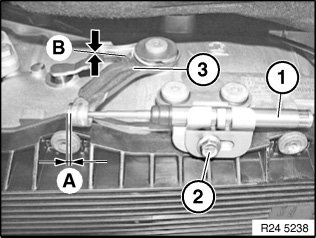

Release screw (2).

Disconnect cable (1).

Installation:
- Release screw (2).
- Bring release lever (3) into contact with selector shaft by pressing gently.
Distance B=0 mm.
- Adjust cable by means of holder until spacing A ≥ 1 mm is obtained
- Tighten screw (2).
