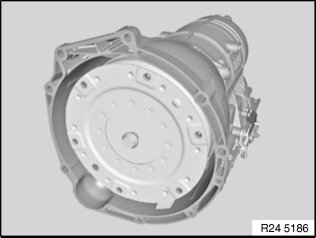

24 00 056 Installing Exchange Transmission (GA8HP90Z)

24 00 056 Installing exchange transmission (GA8HP90Z)





Important!
- It is imperative to avoid skin contact with transmission oil and inhalation of transmission oil vapors.
- Wear protective gloves.
- Ensure adequate ventilation.





Drain automatic transmission fluid at oil drain plug.

Tightening torque 24 11 5AZ.

Important!
After completion of work, program control transmission control unit.





Recycling:
Catch and dispose of escaping transmission oil.
Observe country-specific waste disposal regulations.





Important!
- Before installing exchange transmission, always flush transmission oil cooler together with lines.
- After completion of work, check transmission oil level.
- Use only approved transmission oil
Failure to comply with this requirement will result in serious damage to the automatic transmission
Exchange transmissions come filled with oil





Necessary preliminary work:
^ Remove automatic transmission

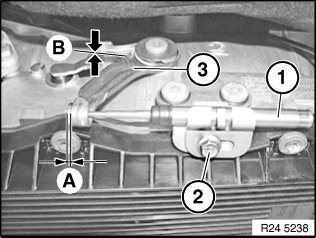

Swap over release lever (3).

Tightening torque 24 51 3AZ.

Convert holder for cable.

Tightening torque 24 51 4AZ.





Modify transportation retainers.

Convert all cable clips.

Convert all seal plugs.

Convert protective cap on output shaft.

Important!
After removing transportation retainer, secure torque converter against slipping out.

Transmission identification:
- refer to BMW Parts Department.
- On type plate
