24 00 043 Installing Replacement Transmission (GA6HP26Z)

24 00 043 Installing replacement transmission (GA6HP26Z)





Drain automatic transmission fluid at oil drain plug.

Tightening torque 24 11 2AZ.

Important!
After completion of work, program control unit for transmission.





Recycling:
Catch and dispose of escaping transmission fluid.
Observe country-specific waste disposal regulations.





Important!
- Before installing replacement transmission, always flush transmission fluid cooler together with lines.
- After completion of work, check transmission fluid level.
- Use only approved transmission oil
Failure to comply with this requirement will result in serious damage to the automatic transmission
Replacement transmissions come filled with transmission fluid





Necessary preliminary tasks:
^ Remove automatic transmission

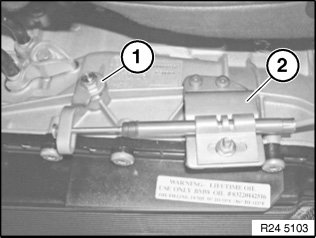

Modify gearshift lever (1).

Tightening torque 24 51 1AZ.

Modify clip (2) for cable.





Modify transportation retainers.

Convert all cable holders.

Convert all seal plugs.

Modify protective cap on output shaft.

Important!

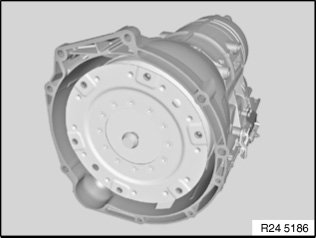

After removing transportation lock, secure torque converter against slipping out.

Transmission identification:
- refer to BMW Parts Department.
- On type plate
