24 31 565 Replacing Torque Converter Shaft Seal (GA8HP90Z)

24 31 565 Replacing torque converter shaft seal (GA8HP90Z)

Special tools required:





Important!
- Avoid skin contact with gearbox oil and inhaling gearbox oil fumes.
- Wear protective gloves.
- Ensure adequate ventilation.





Important!
After completion of work, check gearbox oil level.
Use only approved gearbox oil.

Failure to comply with this instruction will result in serious damage to the transmission.





Necessary preliminary tasks:
^ Remove torque converter.





Secure gearbox with special tool 24 0 200 on assembly stand 00 1 450.

Note:
Read and comply with note on installation of gearbox retaining bridge.

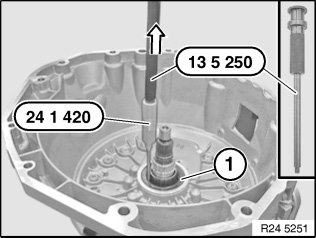

Pull out radial shaft seal (1) with special tools 24 1 420 and 13 5 250.





Oil sealing lip on shaft seal.

Drive in radial shaft seal (1) with special tool24 2 410 as far as it will go.
