24 14 007 Replacing Shaft Seal For Selector Shaft (GA8HP90Z)

24 14 007 Replacing shaft seal for selector shaft (GA8HP90Z)

Special tools required:





Important!
- Avoid skin contact with gearbox oil and inhaling gearbox oil fumes.
- Wear protective gloves.
- Ensure adequate ventilation.





Important!
After completion of work, check transmission oil level.
Use only approved gearbox oil.

Failure to comply with this requirement will result in serious damage to the automatic transmission!





Necessary preliminary tasks:
^ Remove mechatronics.
^ Remove exhaust system.
^ Remove heat shields.
^ Detach propeller shaft center mount.
^ Detach cross member
^ Lower transmission using working jack.

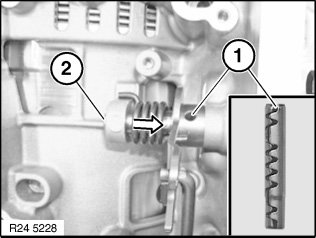

Using a suitable tool, drive roll pin (1) out of selector shaft.

Withdraw selector shaft (2) outwards.

Note:
Return spring is under tension.

Installation note:
Replace roll pin (1).

Insert narrower end of roll pin (1) into hole first. Using a suitable tool, drive in roll pin until it is flush with the hole.

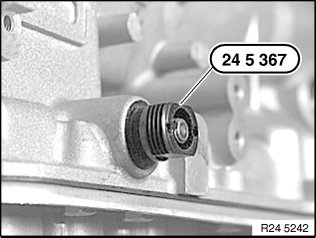

Screw in special tool 24 5 367 until it is firmly connected with radial shaft seal.

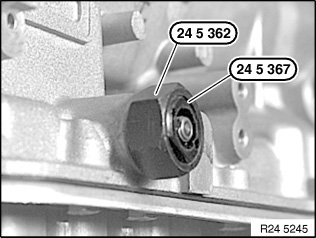

Screw special tool 24 5 362 onto special tool 24 5 367 and tighten down.

This pulls the shaft seal out of the transmission housing.





Oil sealing lip on shaft seal (1).

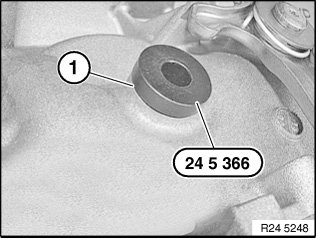

Drive radial shaft seal (1) fully home using special tool 24 5 366 and plastic hammer.
