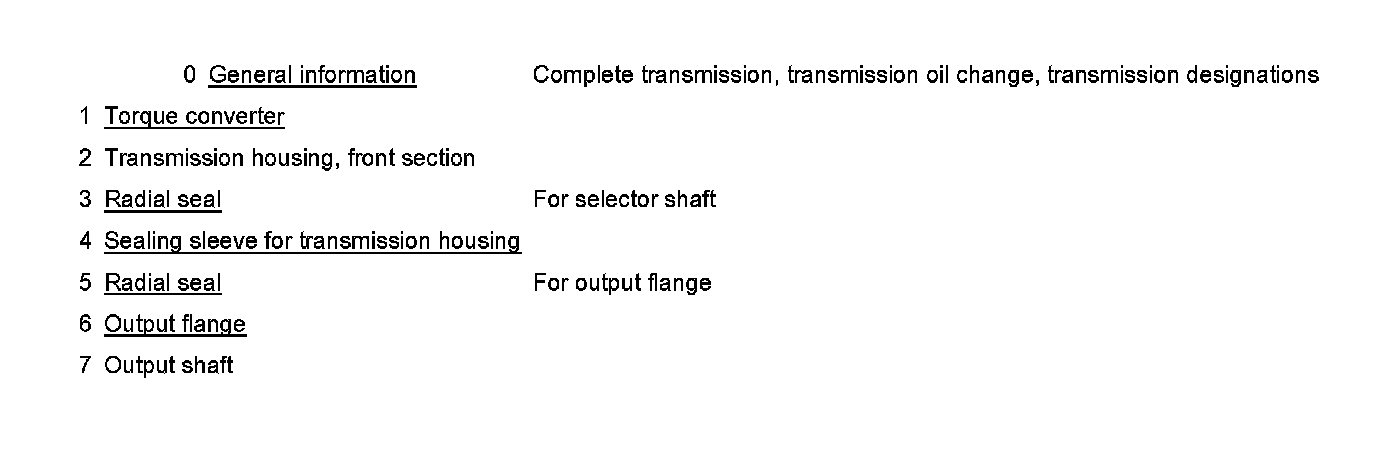

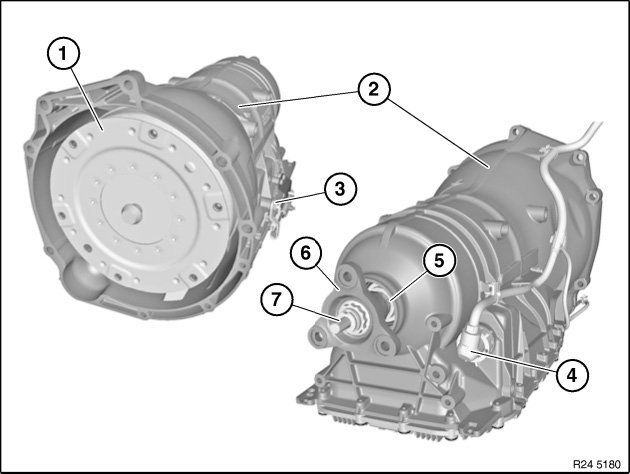

24 00 ... Overview of Transmission Housing (GA6HP19Z)
24 00 ... Overview of Transmission Housing (GA6HP19Z)
24 00 ... Overview of transmission housing (GA6HP19Z)
