37 13 126 Removing and Installing/Replacing Pressure Line For Valve Block VA2

37 13 126 Removing and installing/replacing pressure line for valve block VA2

Special tools required:





Warning!
Danger of poisoning if oil is ingested/absorbed through the skin!
Risk of injury if oil comes into contact with eyes and skin!

Important!
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Do not draw off hydraulic fluid (risk of contamination).
Close off line connections with seal plug.32 1 270





Recycling:
Catch and dispose of hydraulic fluid in a suitable collecting vessel.





Necessary preliminary work:
^ Remove front underbody protection
^ Remove right steering assembly cover
^ Remove front right wheel arch cover





Important!
Pressure line and connection on valve block must be fitted with suitable seal plugs 32 1 270 immediately after removal!





Release screw (2).

Tightening torque 37 13 3AZ.

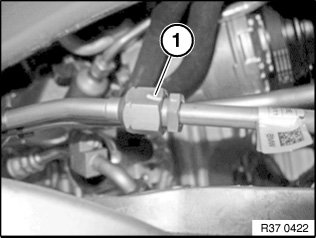

Release screw connection (1) and remove line.

Tightening torque, 37 13 5AZ.





Important!
When assembling, make sure that in succession only the seal plugs of the line to be fitted are removed.
When fitting lines, do not tilt connectors (sealing rings!) and connect fully before screwing.
Do not replace sealing rings on hydraulic lines.
Replace affected line if sealing ring is damaged.





After installation:
^ Fill and bleed hydraulic system
^ Check line connections for leak tightness
^ Carry out initial Dynamic Drive operation
