37 13 ... Notes on Fitting A New Pipe or A Screw Connection

37 13 ... Notes on fitting a new pipe or a screw connection





Important!
Do not kink, twist or crush lines.
Do not disassemble screw connection!





Fitting new screw connection:
Insert complete new screw connection consisting of toothed ring (1), banjo bolt (2) and assembly plug (3) into air spring/pipe connection of air supply unit.

Tightening torque 37 12 3AZ.

Remove assembly plug (3).

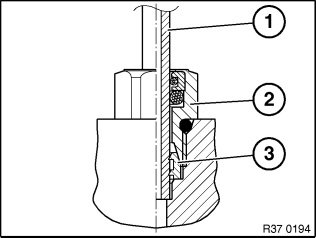

Slide new pipe (1) into banjo bolt (2) up to marking.

Check installation position of pipe (1) by pulling back slightly.

Note:
The toothed ring (3) has engaged correctly when the pipe (1) cannot be pulled back.





Fitting new pipes:

Important!
To avoid leaks in the air spring system, it is essential to avoid scratches on pipes in particular in the connection area!
