33 32 153 Removing and Installing/Replacing Front Compression Strut

33 32 153 Removing and installing/replacing front compression strut





Important!
Observe safety instructions for raising the vehicle
Driving without compression struts is not permitted!

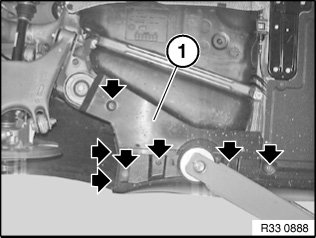

Release screws of underbody paneling (1).

Remove underbody paneling (1).





Release screws (1).

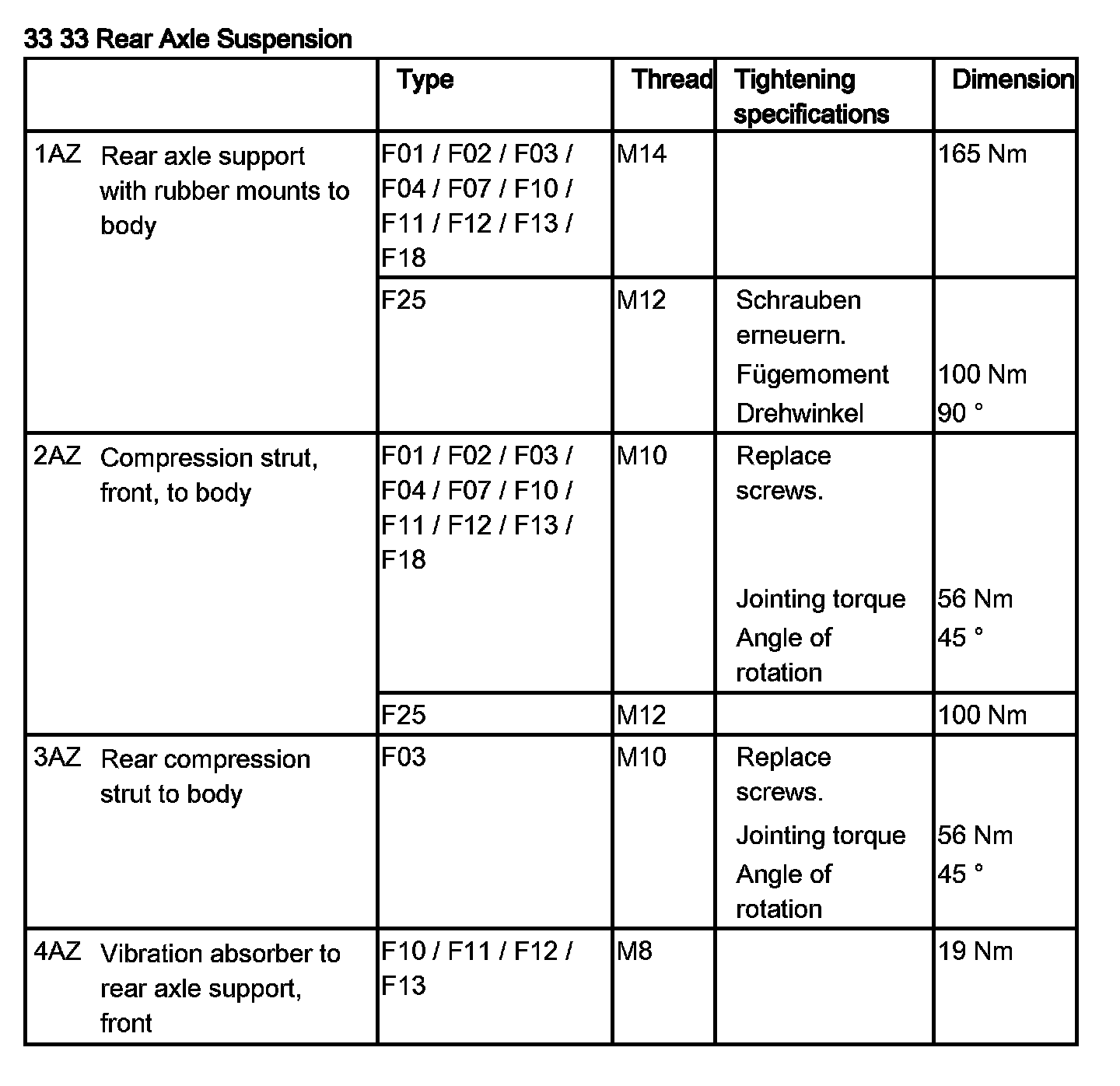

Tightening torque 33 33 2AZ.

Release screw (2) and remove compression strut (3).

Tightening torque 33 33 1AZ.

Important!
Secure rear axle support by inserting screw (2).

Installation:
Check threads for damage; if necessary, repair with Heli-Coil(R) thread inserts.
