84 21 545 Removing And Installing/Replacing Hands-Free Charging Electronics (High) (USB/Audio Interface) (Option SA633/SA639)

84 21 545 Removing And Installing/Replacing Hands-Free Charging Electronics (High) (USB/Audio Interface) (Option SA633/SA639)







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







NOTE: Comply with notes and instructions on handling optical fibres.







Necessary preliminary work:
- Clamp off battery negative lead
- Disconnect both negative battery cables for F03
- Remove left luggage compartment wheel arch panel
- If necessary, remove amplifier (without F03)

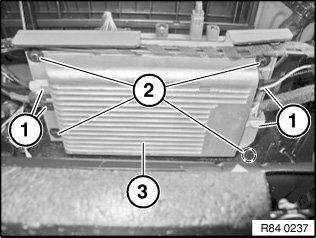

Unlock plug connections (1) and disconnect.
Unfasten screws (2).
Remove hands-free charging electronics (3).

Installation note:
Make sure plug connections are correctly engaged.







Replacement:
- Carry out vehicle programming/encoding
