Ride Height Sensor: Service and Repair

37 14 515 Replacing rear left or right ride height sensor





Important!
Observe safety information for raising the vehicle





Important!
Read and comply with notes on protection against electrostatic discharge (ESD protection).

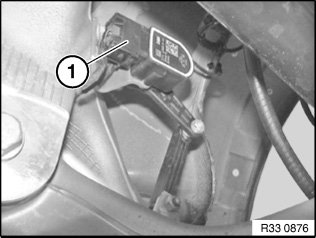

Unfasten plug connection (1) and disconnect.

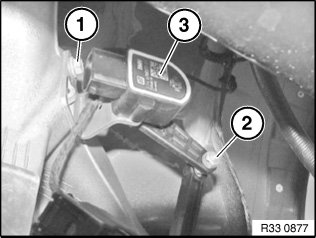

Release nut (2) and disconnect jointed rod.

Tightening torque 37 14 4AZ.

Installation note:
Sensor lever (3) must point from ride height sensor to respective rear wheel.

Replace self-locking nut.

Release screws (1) and remove ride-height sensor (3).

Tightening torque 37 14 2AZ.





Replacement:

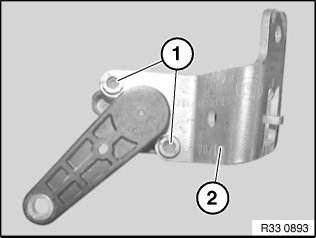

Release screws (1). Remove holder (2) from ride-height sensor.

Tightening torque 37 14 3AZ.





After installation:
^ Carry out ride height adjustment
^ Check headlight setting, correct if necessary
