Fuel Gauge Sender: Service and Repair

16 12 000 Removing And Installing/Replacing Sensor For Fuel Gauge







Recycling
Fuel escapes when fuel lines are detached. Have a suitable collecting container ready.
Catch and dispose of escaping fuel.
Observe country-specific waste-disposal regulations.







IMPORTANT:
Ensure adequate ventilation in the place of work.
Avoid skin contact (wear gloves).
Ensure absolute cleanliness when working on the open fuel system.
Contaminants in the fuel tank can impair driving operation or may even result in vehicle breakdown.







Necessary preliminary tasks:
- Draw off fuel
- Remove rear seat
- Vehicles with comfort seat:
Remove right rear seat

- Remove flange cover

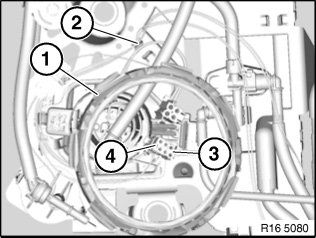

NOTE: Picture does not show the fuel tank outer skin.

Unclip connecting line for level sensor (2) through service opening (1).
Disconnect plug connector for level sensor (3) from plug connector installation unit on left (4).

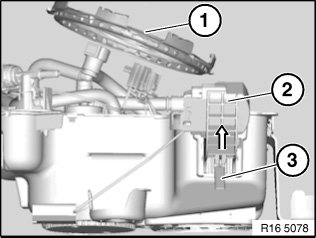

NOTE: Picture does not show the fuel tank outer skin.

Unlock tab (3) in upward direction through service opening (1) and lift out level sensor (2).

Installation:
Level sensor (2) must audibly snap into place.
