Discharge Air Temperature Sensor / Switch: Service and Repair

64 11 906 Removing And Installing/Renewing Ventilation Temperature Sensor (Centre Fresh-Air Grille)







Necessary preliminary tasks:
- Remove Car Infotainment Computer

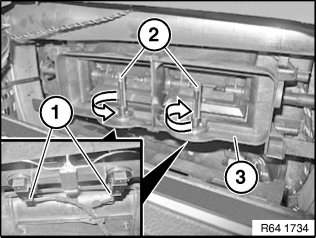

Disconnect plug connection (1).
Turn temperature sensor (2) on plug socket in direction of arrow as far as it will go.
Remove temperature sensor (2) from centre fresh-air grille (3).

Installation:
Pay attention to lead sequence.
Make sure temperature sensor (2) is correctly engaged in middle fresh-air grille (3).
