Electric Parking Brake Switch: Service and Repair

61 31 172 Removing And Installing/Replacing Switch For Electromechanical Parking Brake







Necessary preliminary work:
- Disconnect negative battery cable (to avoid fault entries)
- F03 Only: Disconnect both negative battery cables
- Remove gear selector switch cover

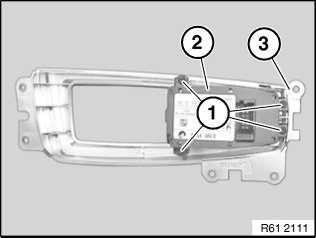

Release screws (1).
Remove switch for electromechanical parking brake (2) from cover for gear selector switch (3).
