61 31 043 Removing and Installing/Replacing Roof Switch Cluster (Complete With Trim) (Roof Function Center)

61 31 043 - Removing and installing/replacing roof switch cluster (complete with trim) (roof function center)





Special tools required:





Important!
Follow instructions for handling light bulbs (interior lights) 63 99 x02 Instructions For Replacing Light Bulbs (Interior Lights).





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).

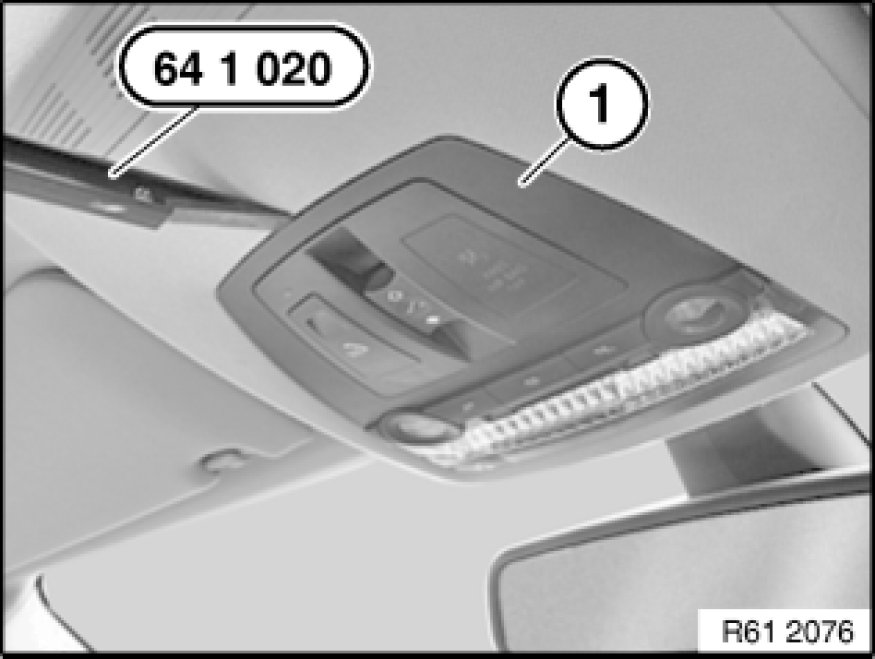

Carefully unclip trim (1) with special tool 64 1 020 and remove.

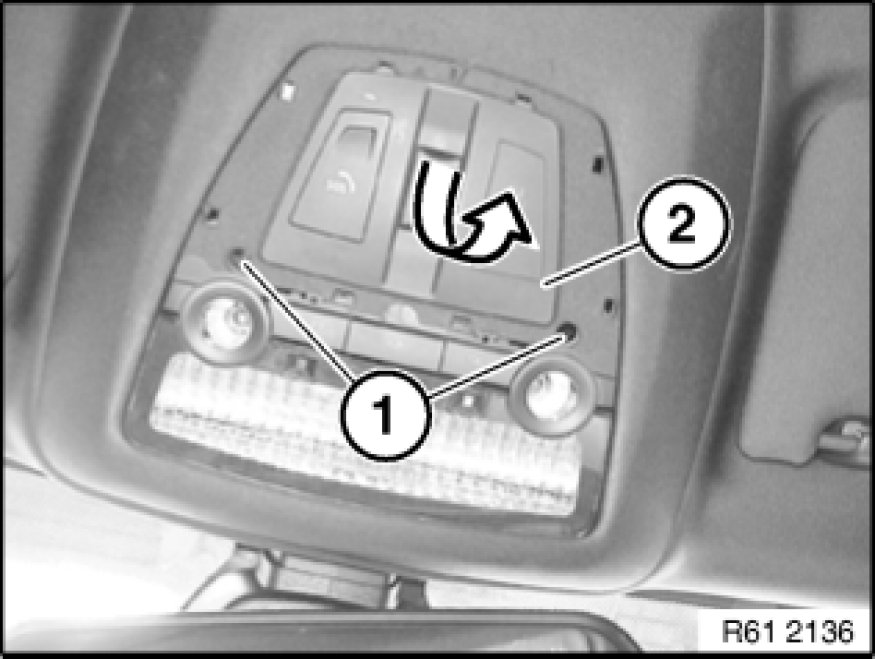

Release screws (1).

Remove roof switch cluster (2) in direction of arrow.

Disconnect plug connections underneath.

Installation Note:
Make sure roof switch cluster (2) is correctly seated.

Ensure trim (1) is correctly seated.





Important!
Disconnecting the plug connection for the SOS emergency call button results in fault memory entries in the telephone control unit (limitation in the emergency SOS call system).

After fitting, read out fault memory and if necessary delete entries.
