66 20 542 Removing and Installing/Replacing A Rear Ultrasonic Transducer

66 20 542 Removing And Installing/Replacing A Rear Ultrasonic Transducer







Necessary preliminary work:
- Remove rear bumper trim

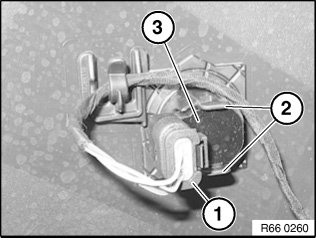

Unfasten plug connection (1) and disconnect. Unlock latch mechanisms (2) and pull ultrasonic transducer (3) out of bracket.

Installation note:
Retaining tabs (2) must not be damaged.
Make sure ultrasonic sensor is securely seated.







Installation note:

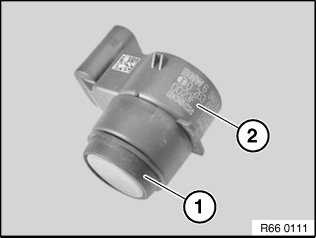

Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).
