66 20 515 Removing and Installing/Replacing A Front Left Ultrasonic Transducer

66 20 515 Removing And Installing/Replacing A Front Left Ultrasonic Transducer

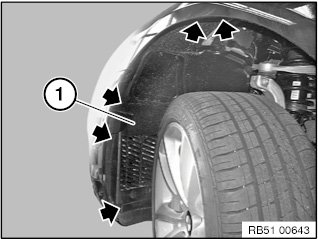

Release the expanding rivet at marked points.
Fold wheel arch panel (1) to one side.

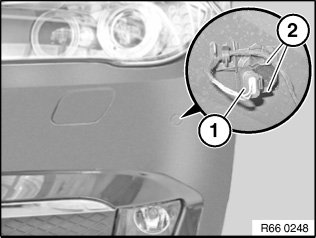

Unfasten plug connection (1) and disconnect.
Unclip ultrasonic transducer from retaining tabs (2).

Installation note:
Retaining tabs (2) must not be damaged.
Make sure ultrasonic sensor is securely seated.







Installation note:

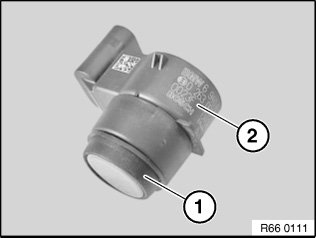

Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).
