65 77 605 Replacing Sensor MAT For Passenger Seat Occupancy Detector

65 77 605 - Replacing sensor mat for passenger seat occupancy detector





Warning!
US/CDN front passenger seat (with OC3 mat) only:
The padding can only be removed in conjunction with the OC3 mat.
If padding is defective, both parts may only be replaced together.
After fitting new padding, enable OC3 mat with BMW diagnosis system.





Necessary preliminary tasks:
- Remove seat cover for passenger seat

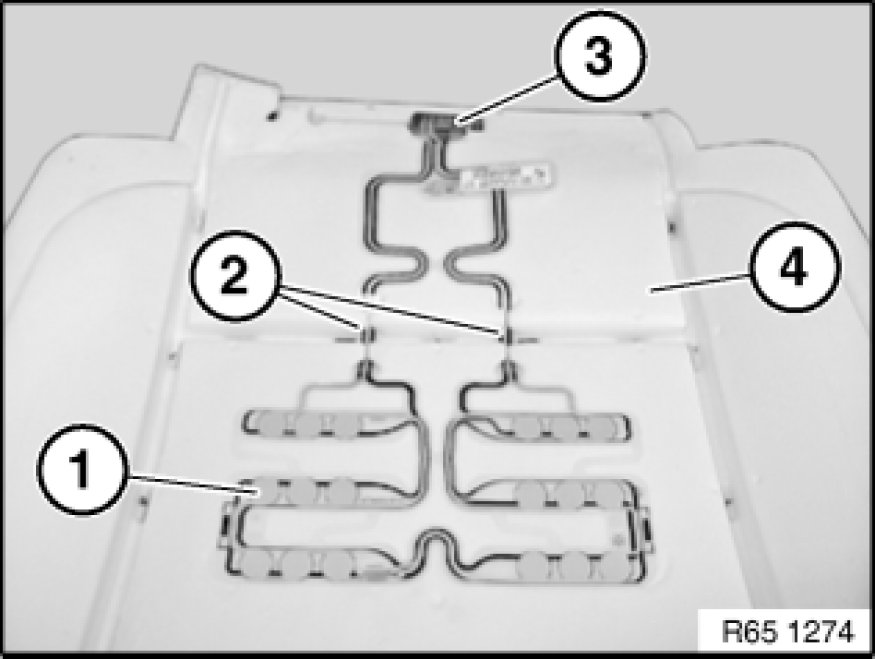

Pull sensor mat (1) off passenger seat padding (4) and feed out plug housing (3).

Installation Note:
- To avoid malfunctions, make sure sensor mat (1) is cleanly laid:
- Lay plug housing (3) in designated recess
- Lay sensor mat ribs (2) cleanly and feed into designated recesses
- Secure sensor mat (1) to bonding surface
- Lay sensor mat (1) straight and without kinks
