36 11 123 Removing and Installing/Replacing An RDC Trigger Transmitter (Rear)

36 11 123 Removing and installing/replacing an RDC trigger transmitter (rear)





Necessary preliminary tasks:
^ Remove right wheel arch trim

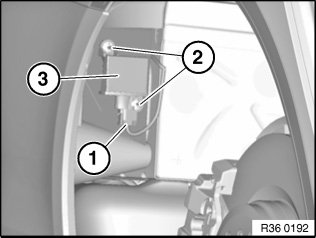

Left side:
Disconnect plug connection (1).

Release plastic nuts (2).

Remove RDC transmitter (3).





Right side:

Disconnect plug connection (1).

Release expander rivets (2).

Remove RDC transmitter (3).
