16 13 015 Removing and Installing/Replacing Tank Leak Diagnosis Module (Petrol/Gasoline Cars With US DMTL Version)

16 13 015 Removing And Installing/Replacing Tank Leak Diagnosis Module (Petrol/Gasoline Cars With US DMTL Version)







Necessary preliminary tasks:
- Remove carbon canister







Unlock and disconnect snap fastener (1).

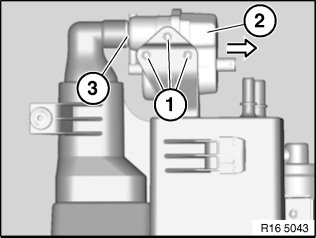

Release screws (1).
Detach diagnosis module (2).

Installation:
Replace gasket (3).
