63 31 080 Removing and Installing/Renewing Luggage Compartment Light

63 31 080 Removing and Installing/Renewing Luggage Compartment Light

NOTE: Open luggage compartment lid.

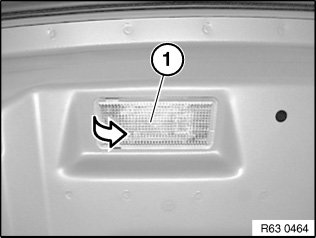

Lever out luggage compartment light (1) in direction of arrow.
Disconnect plug connection underneath and remove luggage compartment lamp (1).







IMPORTANT: Follow instructions for handling light bulbs (interior lights).

Replacement:
- If necessary, remove bulb.
Note bulb type.
