Tail Light Bulb: Service and Repair

63 99 312 Replacing Bulb(s) For Left Or Right Rear Light (Rear Lid)







WARNING: Follow instructions for handling light bulbs (exterior lights).







Necessary preliminary tasks:
- Remove panel for tailgate

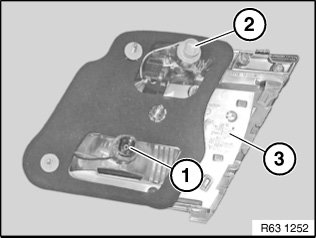

NOTE: Rear light (3) shown removed for purposes of clarity.

Pull bulb holder (1) or bulb holder (2) out of rear light (3) and change corresponding bulb.

NOTE:
1. Bulb for rear fog light
2. Bulb for reversing light

Installation:
Note bulb type.
