61 33 055 Removing and Installing/Renewing Right Fanfare Horn



61 33 055 Removing And Installing/Renewing Right Fanfare Horn







Necessary preliminary tasks:
- Remove front bumper trim

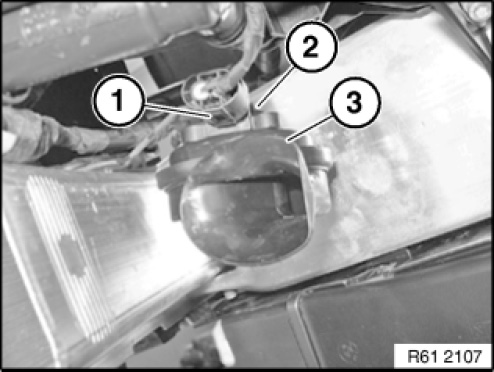

Disconnect plug connection (1) and release nut (2).
Remove fanfare horn (3).
