67 16 011 Removing and Installing/Replacing Left Headlight Vertical Aim Adjuster

67 16 011 Removing And Installing/Replacing Left Headlight Vertical Aim Adjuster







WARNING:
Version with xenon headlights: Danger to life due to high voltage.
Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (control unit, ignition unit with lamp) may only be carried out by specialist personnel.







Necessary preliminary work:
- Remove headlight

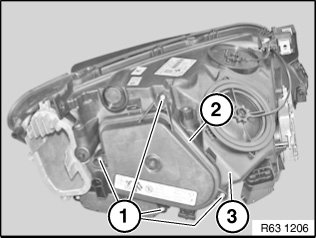

Release screws (1) on cover (2) and remove from headlight (3).
Tightening torque 63 12 4AZ .

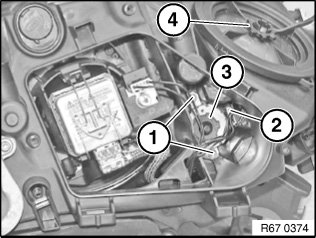

Release screws (1).
Disconnect plug connection (2).
Snap headlight vertical aim adjuster (3) out of mounting.

NOTE: Opening cover (4) makes it easier to feed in and engage vertical aim adjuster (3).

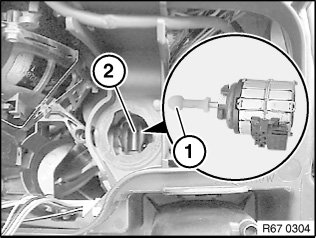

Engage ball head of vertical aim adjuster (1) in mounting (2).







After installation:
- Adjust headlights
