61 31 043 Removing and Installing/Replacing Roof Switch Cluster (Complete With Cover) (Roof Function Centre)

61 31 043 Removing And Installing/Replacing Roof Switch Cluster (Complete With Cover) (Roof Function Centre)

Special tools required:







IMPORTANT: Follow instructions for handling light bulbs (interior lights).







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Carefully unclip cover (1) with special tool 64 1 020 and remove.

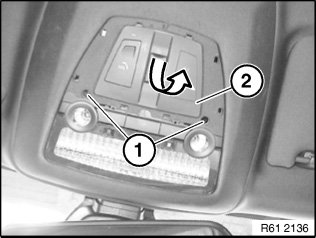

Release screws (1).
Remove roof switch cluster (2) in direction of arrow.
Disconnect plug connections underneath.

Installation note:
Make sure roof switch cluster (2) is correctly seated.
Ensure cover (1) is correctly seated.

Installation note:
If necessary, initialise slide/tilt sunroof







IMPORTANT:
Disconnecting the plug connection for the emergency call button results in fault entries in the telephone control unit (limitation in the emergency call system).
After fitting, read out fault memory and if necessary delete entries.
