Securing Engine In Installation Position

11 00 670 Securing engine in installation position (N54)

Special tools required:





Warning!
Risk of injury!
Observe following instructions relating to special tool:
1. Prior to each use, check the special tools for defects, modifications and operational reliability.
2. Damaged/modified special tools must not be used!
3. No changes or modifications may be made to the special tools!
4. Keep special tools dry, clean and free of grease.





Note:
^ Numbering system for special tools has been re-encoded.





Important!
Special tool 00 6 000 must not be fitted when transverse member (1) is installed!





Necessary preliminary tasks:
^ Secure engine compartment lid in service position
^ Remove assembly underside protection at front and rear
^ Remove panel for engine compartment lid at side
^ Remove acoustic cover

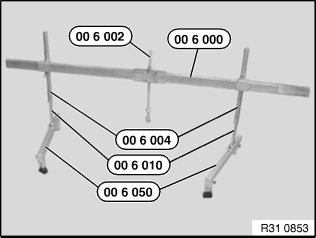

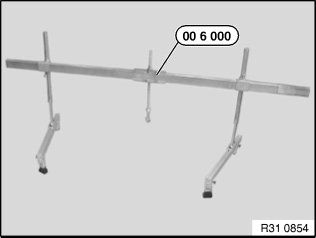

Assemble transverse member 00 6 000 with special tools 00 6 002 00 6 004, 00 6 010, 00 6 050.

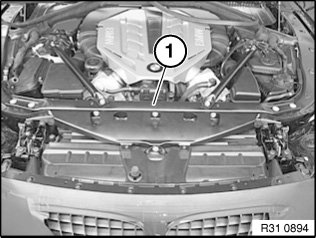

Graphic shows: N63 engine

Note:

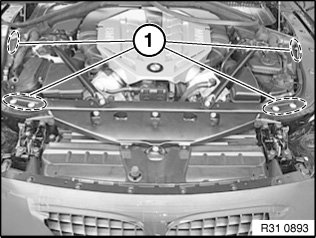

Contact points (1) for special tool 00 6 050 are pictured.

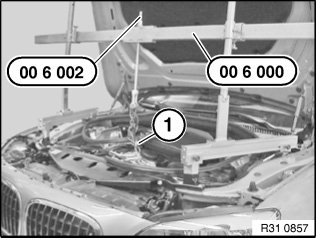

Position transverse member 00 6 000 with a 2nd person helping on contact points (1).





Screw towing hook (1) into engine block.





Align transverse member so that spindle 00 6 002 is correctly positioned over towing hook.

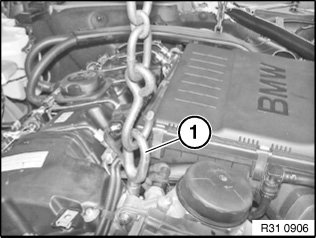

Secure suitable chain to spindle 00 6 002 and suspend from towing hook (1).





Important!
Avoid a change of engine position in the transverse or longitudinal direction.
Always make sure there is sufficient clearance between the engine (or its attachment parts) and the body.





Warning!
Risk of injury!
Tighten down all screws and nuts on transverse member 00 6 000.

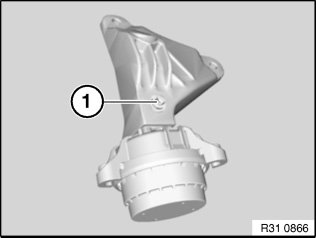

Release bolts (1) on engine mount.

Raise engine approx. 10 mm with transverse member.

Important!
Note installation instructions!
To ensure play between engine mount and engine support arm, lower the engine completely before tightening the bolt connection (engine mount/engine support arm).

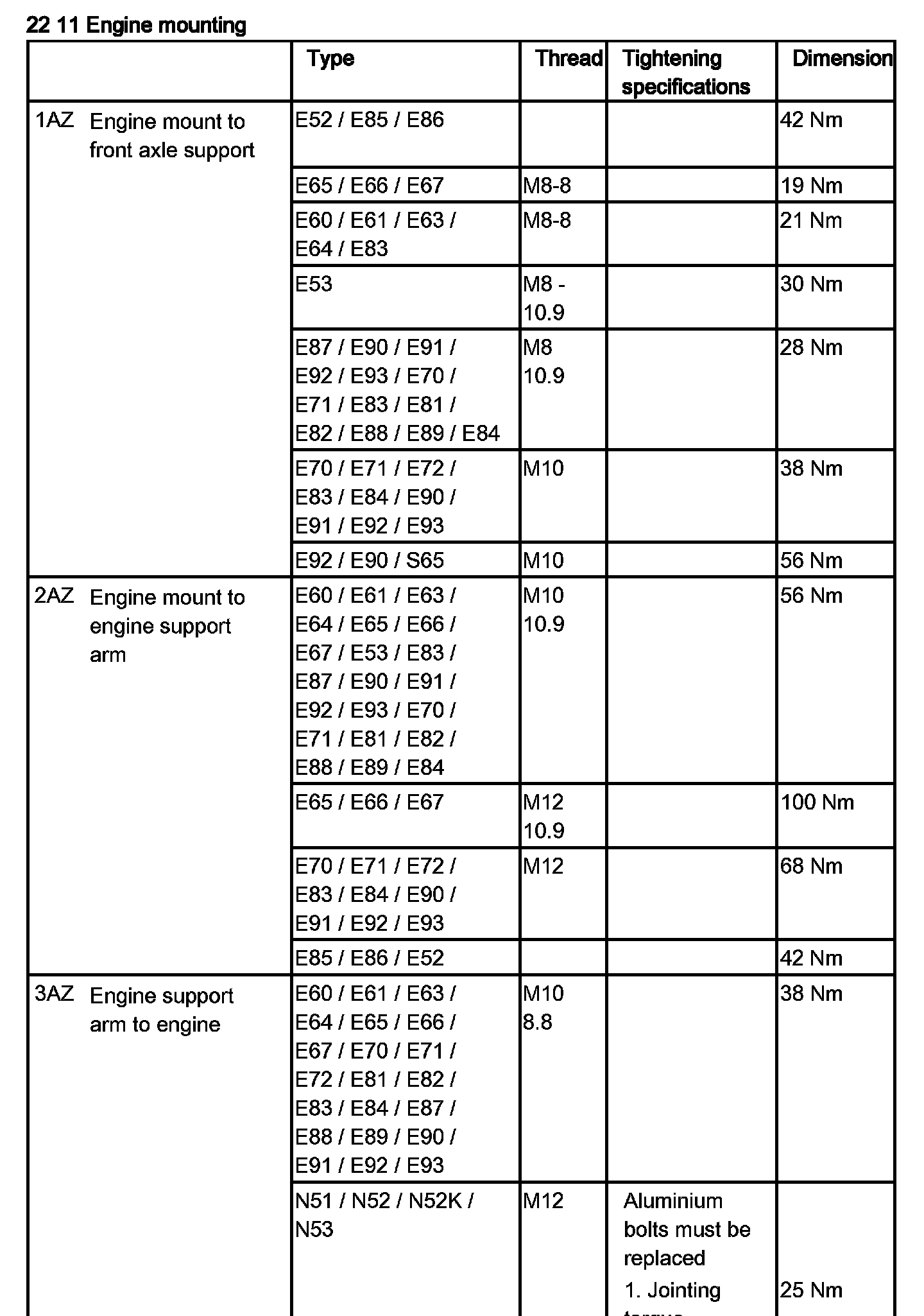

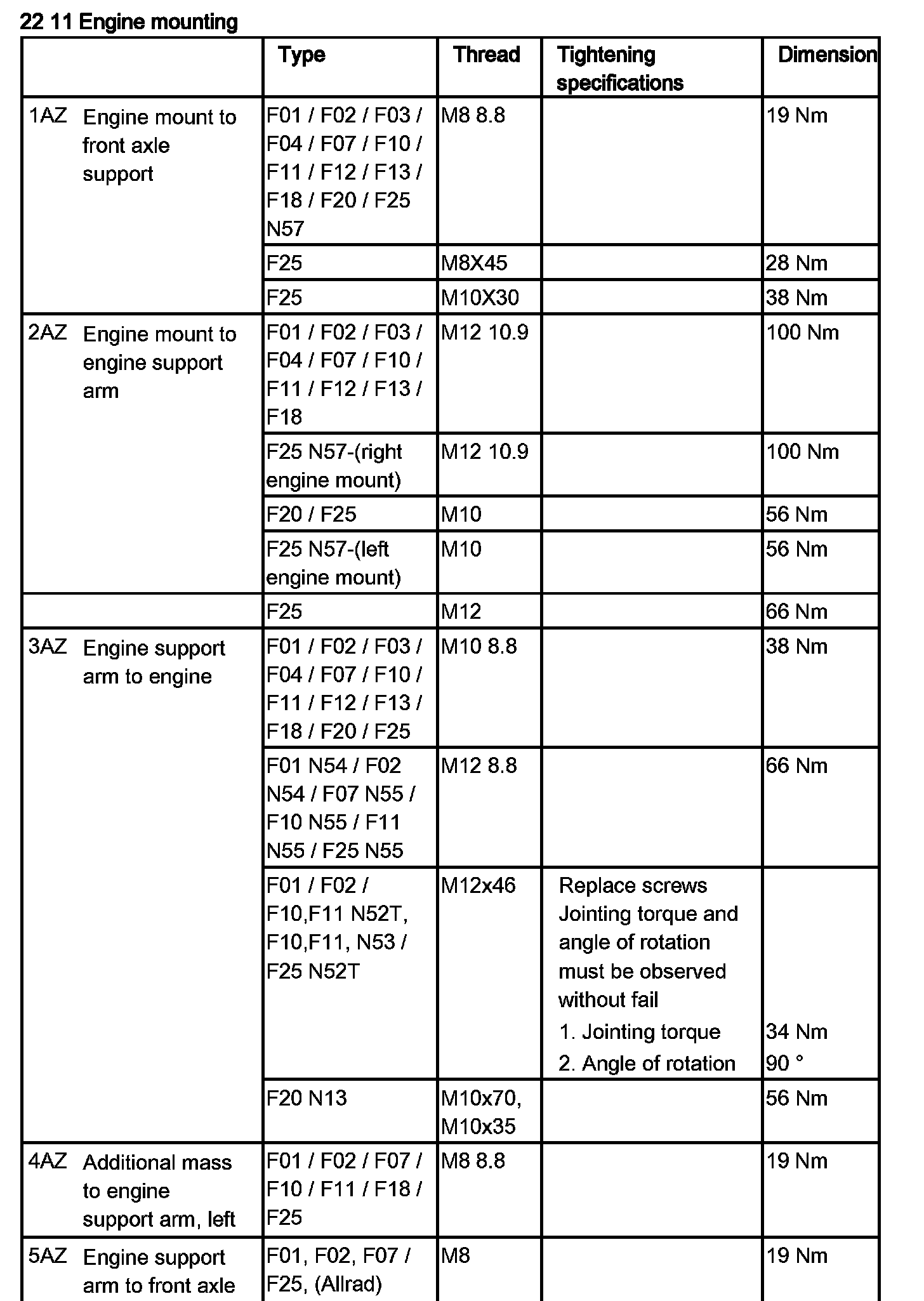

Tightening torque 22 11 2AZ.

$��:

,;�:
