52 25 030 Removing and Installing Complete Armrest For Rear Seat Backrest

52 25 030 Removing And Installing Complete Armrest For Rear Seat Backrest

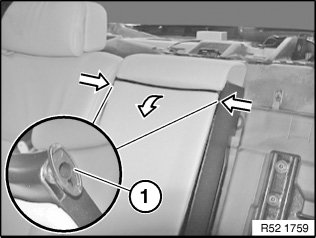

NOTE: Sliding blocks (1) are spring-mounted.

Press sliding blocks (1) on left and right inwards and tilt cover forwards.







Release screws (1).
Tightening torque 52 25 01AZ.
Lever out armrest towards front.

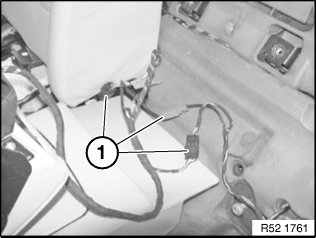

Unlock plug connections (1) and disconnect.

Installation:
Plug connections (1) are coded against incorrect installation.
