52 24 030 Removing and Installing Complete Armrest For Rear Seat Backrest

52 24 030 Removing And Installing Complete Armrest For Rear Seat Backrest







Necessary preliminary work:
- Remove middle head restraint







Press centre armrest cover upwards and remove towards front.







Installation note:
Make sure cover is correctly seated in backrest frame.

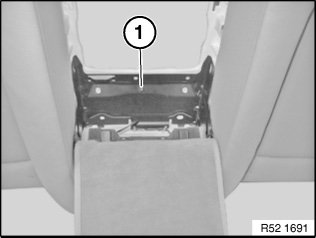

Release screw (1).
Tightening torque 52 24 04AZ.
Remove armrest towards front.
