52 24 ... Removing and Installing/Replacing Drinks Holder In Armrest For Rear Seat Backrest



52 24 ... Removing And Installing/Replacing Drinks Holder In Armrest For Rear Seat Backrest







Necessary preliminary tasks:
- Remove armrest/upper section for rear seat backrest

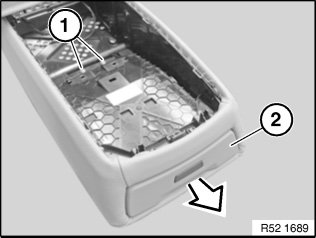

Release screws (1).
Remove drinks holder (2) completely towards front.
