Backrest Shell For Rear Seat

52 24 420 - Replacing backrest shell for rear seat





Special tools required:
- 52 0 050





Necessary preliminary tasks:
- Remove armrest for rear seat backrest Complete Armrest for Rear Seat Backrest
- Remove guide sleeves for head restraints All Guide Sleeves for Rear Head Restraints





Note:
Removal operation is shown on left side.
Carry out removal on right side in the same way.

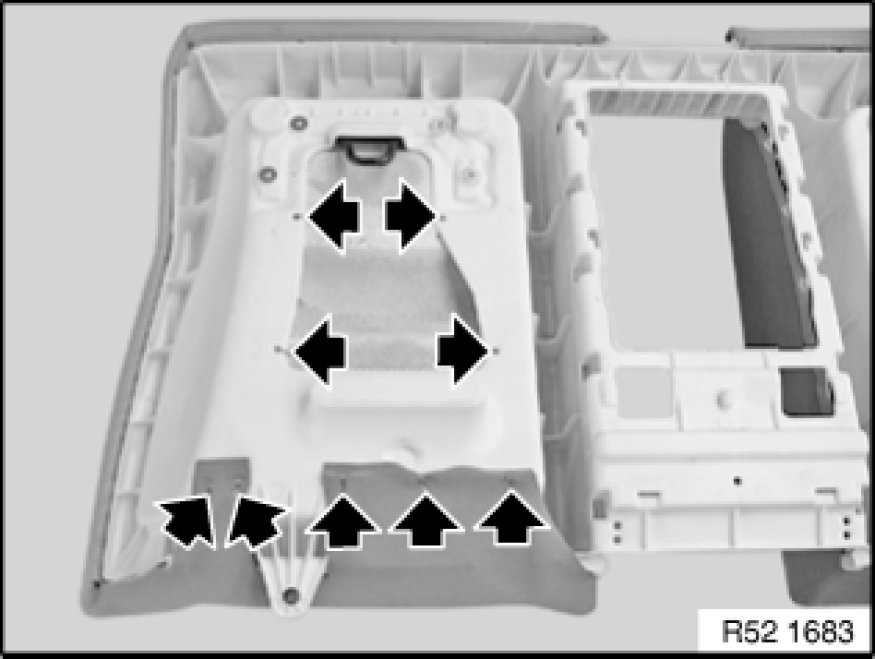

Disconnect all retainers.

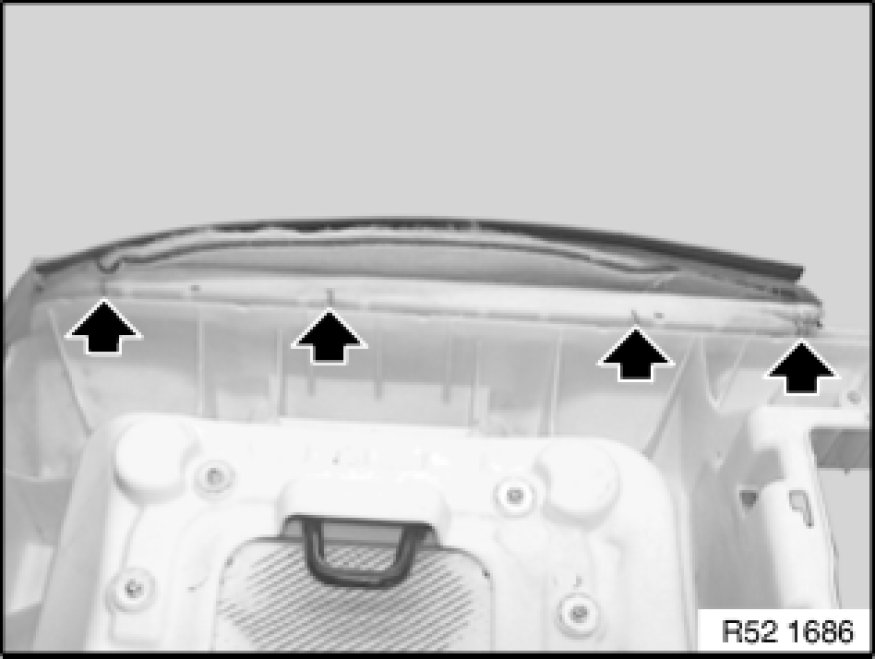

Lever out cover welt in marked area with plastic wedge.





Fold back cover in upper area.

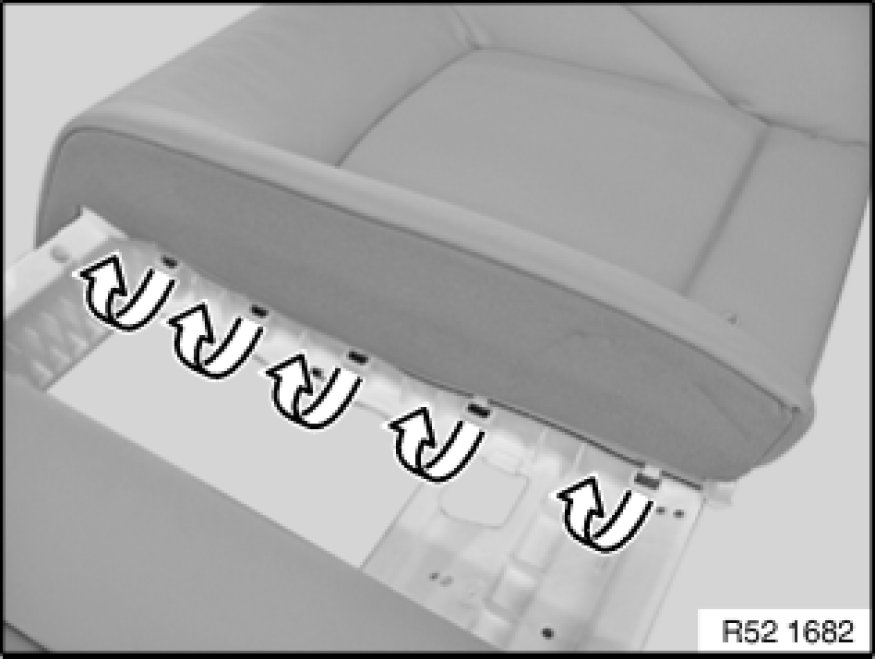

Disconnect retainers underneath.





Installation:
Remove all remnants of retainers.
Lock new retainers by bending with special tool 52 0 050 .





Disengage cover from backrest frame.
Remove cover with padding from backrest shell.
