Removing And Installing/Replacing Luggage Compartment Storage Compartment




51 47 ... - Removing and installing/replacing luggage compartment storage compartment





Necessary preliminary tasks:
- Remove luggage compartment floor trim panel 51 47 101 Removing and Installing/Replacing Luggage Compartment Floor Trim Panel

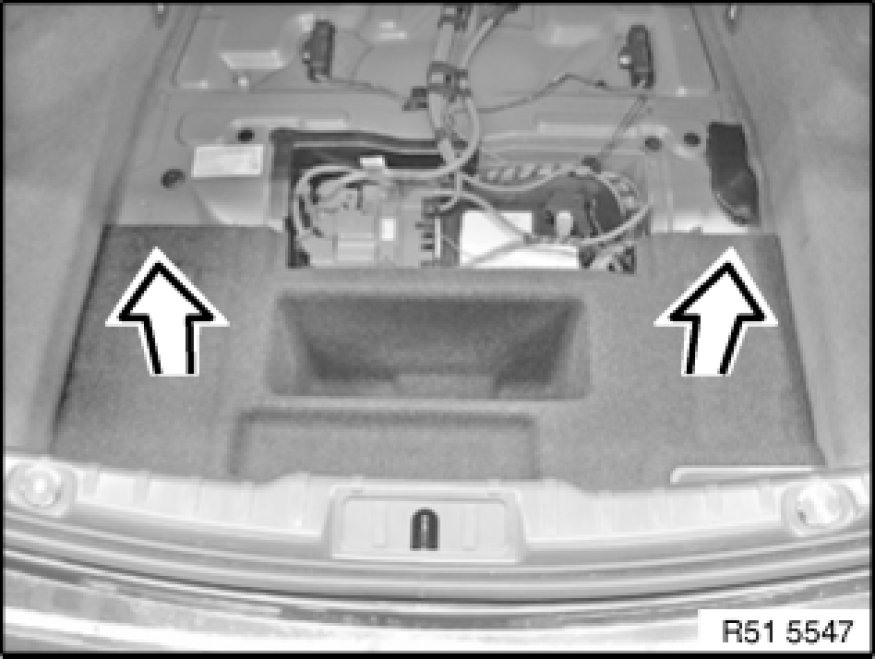

Lift out luggage compartment storage compartment (1) in direction of arrow.
