Removing And Installing (Replacing) Storage Compartment

51 16 216 - Removing and installing (replacing) storage compartment





Necessary preliminary tasks:
- Remove trim on rear center console 51 16 163 Removing and Installing/Replacing Rear Centre Console Cover

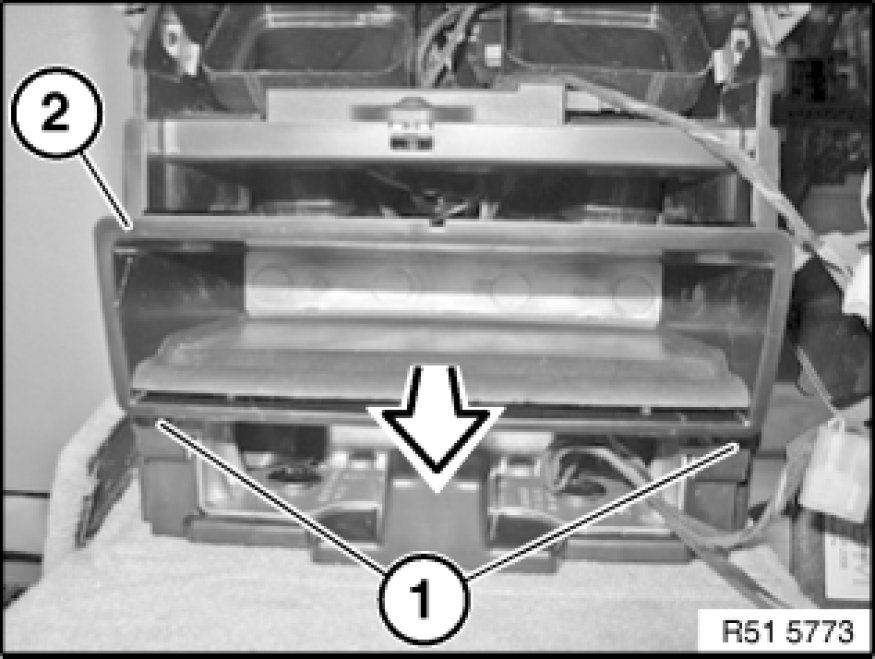

Release screws (1).
Remove storage compartment (2) in direction of arrow.
