Removing and Installing/Replacing Side Trim Panel, Footwell, on A-pillar, Left

51 43 070 Removing And Installing/Replacing Side Trim Panel, Footwell, On A-pillar, Left

Special tools required:







Necessary preliminary work:
- Remove front left inside door sill cover strip
- Remove trim panel for pedal mechanism

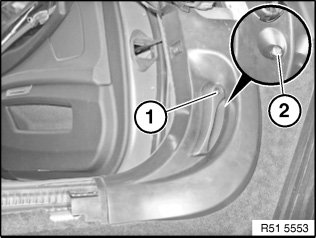

Release screw (1).
Release screw (2).

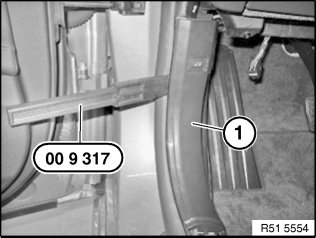

Carefully lever out A-pillar trim panel (2) using special tool 00 9 317.
Disconnect plug connection behind.







Installation note:

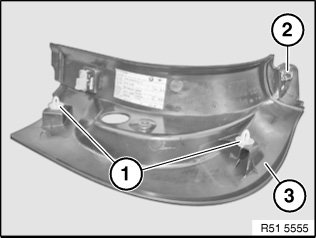

Make sure A-pillar trim panel (3) is correctly seated.
If necessary, replace both clips (1) and clamp (2).
