Removing And Installing Belt Outlet Trim

51 43 310 Removing And Installing Belt Feed Cover

Necessary preliminary work:
- Remove trim panel for roof pillar
- Remove rear seat

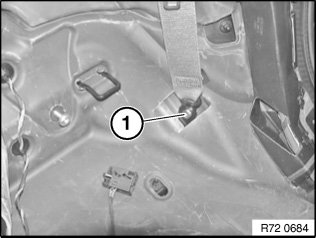

Release screw (1).
Tightening torque 72 11 22AZ.

Installation note:
End fitting is coded against incorrect assembly.

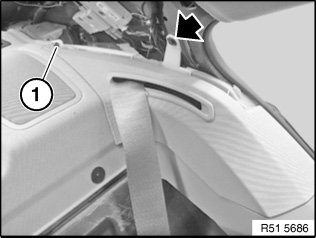

Release screw (1).
Release expanding rivet.
Remove cover.

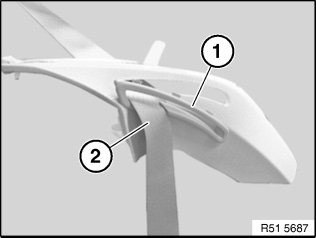

Lever out seat belt finisher strip (1) and feed out seat belt strap (2).
